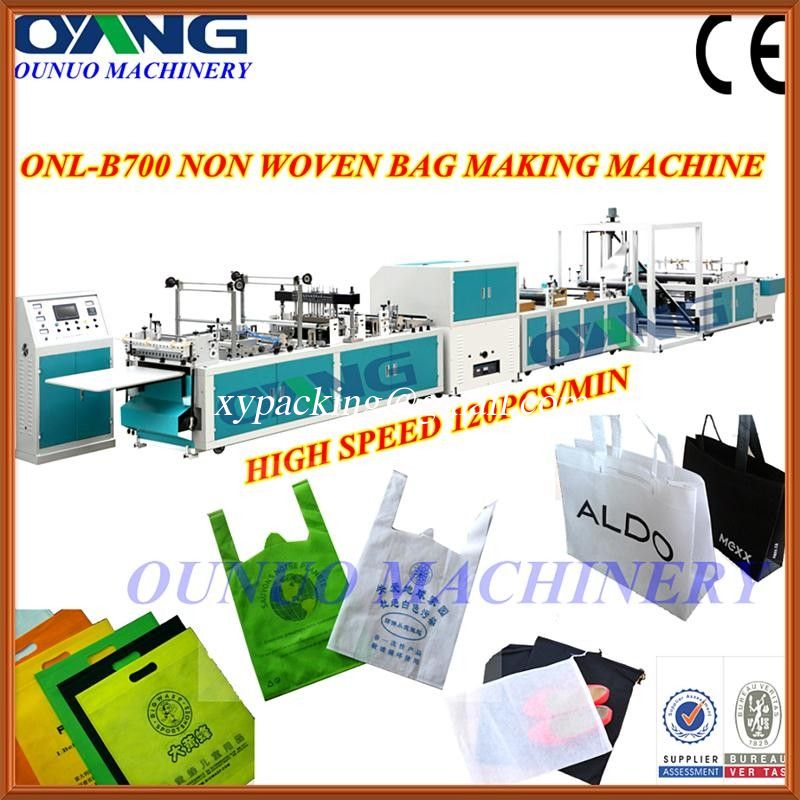

Ultrasonic Non Woven Bag Making Machine High Speed For Shoes Bag

Ultrasonic Non Woven Bag Making Machine High Speed For Shoes Bag

China Ultrasonic Non Woven Bag Making Machine High Speed For Shoes Bag supplier

Large Image :  Ultrasonic Non Woven Bag Making Machine High Speed For Shoes Bag

Product Details:

Place of Origin: China
Brand Name: OUNUO
Certification: CE,ISO9001:2010
Model Number: ONL-XC700

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 1500-5500USD/SET
Packaging Details: Wooden case packing
Delivery Time: 20 days
Payment Terms: 30%TT in advance,70% Before machine loading
Supply Ability: 30 SET/Month
Contact Now
Detailed Product Description



Detailed Product Description





Ultrasonic Non Woven Bag Making Machine High Speed For Shoes Bag



Quick Detail:

This non woven bag making machine is special design for non woven bag making, it can produce different kinds of non woven bag,such as non woven box type bag, vest bag, D-cut type bag, rope wearing type bag,non woven zipper bag,etc indifferent specifications and shapes. It combine the latest mechanical and electrical together as a whole, use ultrasonic sealing type and operation by touch screen,this machine equip auto  punching device, automatic counting, setting counting alarm available either, it is an ideal equipment of non woven bag production.


Description:

Machinery Advantage:
1. We can control the ultrasonic device quality.we make it by ourself. We adopt German design and Japan electrical components.Special re-design the ultrasonic device suitable for non woven bag making.
2. Taiwan Touch Screen,Automatic computer control, automatic feeding, automatic counting, automatic stopping.
3. Easy to operate and strong sealing effective
4. Photocell to track the color
5. Equipped with double stepper motor feeding.
6. Equipped auto pneumatic punching device
7.Equipped with tension control device.
8.Equipped auto loading device.easy operation.
8. Machine has got CE Certification, we also get ISO9001:2008 certification.


Machinery Device:


  1. One set computer with touch-screen system.
  2. One the programmable controller.
  3. Six sets of ultrasonic system.
  4. Traction inverter to control the main motor
  5. Micro-motor four.
  6. Two sets of step motors.
  7. High quality ultrasonic sealing device from Germany to make sure the bag quality



Applications :

1-Box type bag with handle
2-Flat bag with side gusset
3-Flat bag(D-cut bag)
4-T-shirt bag(U-cut or W-cut )
5-Flat bag with handle
6-Shoes bag(rope wearing bag)
7-Laminating bag
8-Zipper bag


Specifications:


Machine Model

ONL-XA700

Production speed

40-120pcs/min

Bag width

100-800mm

Bag length

200-580mm

Loop handle Length

370-600mm

Loop handle thickness

60-120G.S.M

Loop fix speed

40-60pcs/min

No woven fabric specification(G.S.M)

30-100 G.S.M

Power supply

220v,50Hz (60Hz available)

Total power

32KW

Overall size

15200×2600×2000mm straight layout
15200×4400×2000mm vertical layout

Total weight

3200KGS



Competitive Advantage:

1.Have several senior engineers service in many countries, all the year round, with our after-sales office in countries.
2.Machines with quality guarantee for one year, life-long maintenance.
3.A lot of machines can be monitored via Internet, solve customer requirements immediately
4.Several senior engineers innovate and reform the technology continuous, in order to ensure the quality of mechanical Stability.
5.Undertake various non-standard machinery, solve the customers' special requirements.

Ultrasonic Non Woven Bag Making Machine High Speed For Shoes BagUltrasonic Non Woven Bag Making Machine High Speed For Shoes Bag
