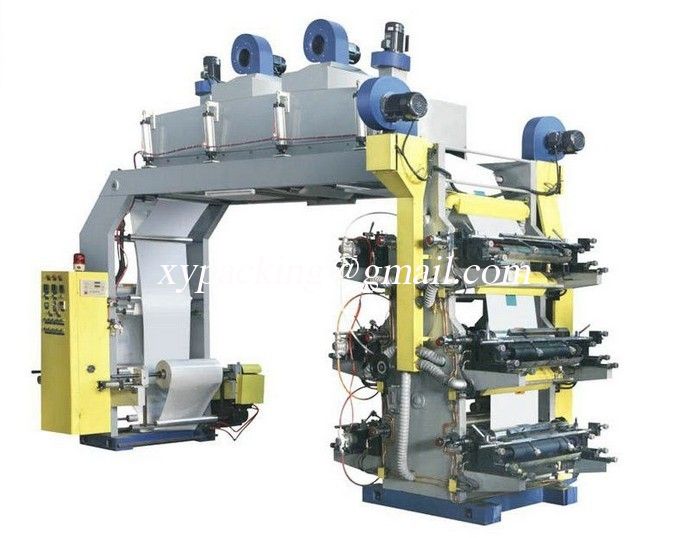

High Speed Flexo Printing machine

High Speed Flexo Printing machine

High Speed Flexo Printing machine

Product Details:

Place of Origin: CHINA
Brand Name: OUNUO
Certification: CE
Model Number: YT-61200

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: 8000-16000 USD/SET
Packaging Details: Wooden package or according to customers requirement
Delivery Time: 20 DAYS
Payment Terms: T/T ,L/C
Supply Ability: 30SET/MONTH
Contact Now
Detailed Product Description

Detailed Product Description



Quick Detail:



This machine is suitable for printing such packing materials as polyethylene,polyethylene plastic bagglass paper and roll paperetc.And it is a kind of ideal printing equipment for producing paper packing bag for food,supermarket handbag,vest bag and clothes bag,etc.





Description:



1. Take it easy, accurate color, long life.

2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.

3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.

4. Use special diagonal-tooth gear, accurate printing size.

5. Two sets of heating devices, including central heating and constant temperature control system for group

control.

6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of

hard chromium.

7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.

8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing

9. Print produce are clear and good arrangement quality.





Applications:



This machine can printing non woven fabirc ,roll paper,plastic film.

LDPE: 28 ~ 100μm   LLDPE: 30 ~ 100μm HDPE: 25 ~ 100μm     CPP: 20 ~ 60μm PP: 23 ~ 65μm   NY: 20 ~ 50μm     PETP: 16 ~ 60μm        OPP: 18 ~ 70μm BOPP: 17 ~ 60μm    OPA: 20 ~ 60μm   Plating film: 30 ~ 80μm   Aluminum: 25 ~ 200μm Cellophane: 30 ~ 100g/m2   Paper : 30 ~ 350g/m2     Wrapping paper : 30 ~ 100g/ m2





Specifications:



Type

YT-4600

YT-4800

YT-41000

Max.Effective Printing Width

560mm

760mm

960mm

Max.Web Width

600mm

800mm

1000mm

Max.Printing Speed

50m/min

50m/min

50m/min

Max.Mechanical Speed

60 m/min

60 m/min

60 m/min

Max.Diameter of Roll Material

450mm

450mm

450mm

Internal Diameter of Roll Core

76mm

76mm

76mm

Rang of Repeat Printing Length

191-914mm

191-914mm

191-914mm

Accuracy of Registration

±0.5mm

±0.5mm

±0.5mm

Plate Thickness

2.38mm

2.38mm

2.38mm

Heating Power

7Kw

10.5Kw

14Kw

Total Power

11.5Kw

15Kw

18.5Kw

Weight of Machine

3000kg

3500kg

4000kg

Overall Dimension

L4200×W1600×H2400mm

L4300×W1900×H2500mm

L4300×W2100×H2500mm





Competitive Advantage:



1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed;

noise is decreased

2. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing

treatments are conducted; low resistance and small flop.

3. The special made modulus angular gears adopted; accurate printing size and full printing specifications

( 6.35mm is a spec)

4. With single doctor blade and circulating pump

5. The grouped and controlled bottom roller processed with Germany particular steel materials processed with

special techniques and electrically gilded with 0.1mm hard chromium protective layers

6. With hard chroming anilox roll

7. The machine use hydraulic printing-roll loading system which can automatically load printing rolls and run

inks after the machine alarm working signal.

8. Good quality printing

9. Brilliance color appearance.

10. The operation is easier and more convenient,the register is more accurate,and the lifespan is also longer





High Speed Flexo Printing machineHigh Speed Flexo Printing machine
