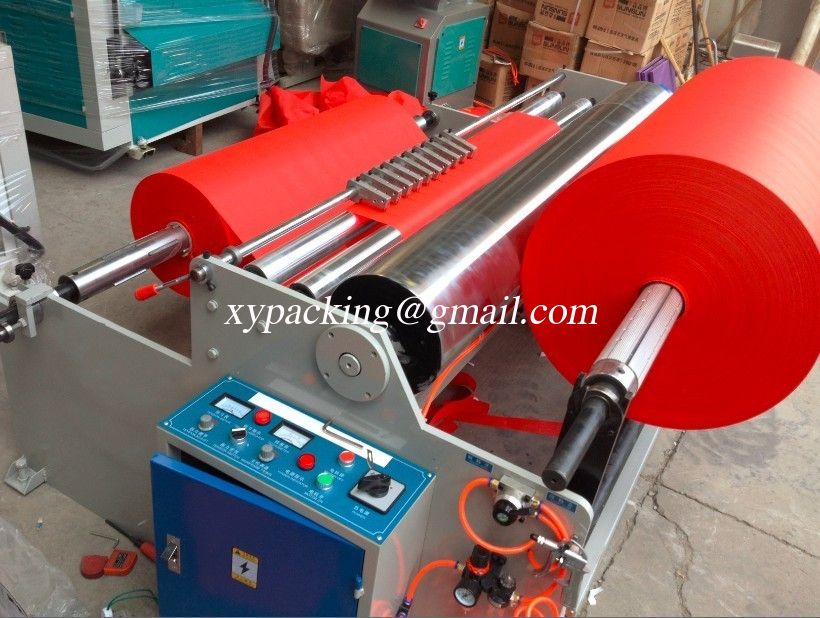

non woven slitting machine

Model :ONL-S1600
voltage:220V/380V,50/60Hz
Effective slitting width:18-1600mm
Maximum feeding diameter:1200mm
Maximum rewinding diameter:1000mm
Power:5 KW
Production rate:100 m/min
size:2200(L) x 2640(W) x 1300(H) MM

Features


1.Plat steel welding, firmly and balanced, more stable in the high-speed operation
2.Chromium-plated steel pipe with dynamic balance processing
3.Feeding with 3 inch air shaft, maximum feeding diameter is 1200mm, with magnetic powder tension controller and edge automatically align device.
4.Rewinding with 3 inch air shaft and magnetic powder controller, easy to operate, maximum rewinding diameter is 1000mm; rewinding aesthetic and neatly.
5.Cutter can use special blades or flat knife (cutter blades), 18mm-3200mm adjustable.
6.Spindle and circular knife with CVT system, can be used as high-low speed control and reversing switch control. Electronic speed control system with manual adjustment, convenient and simple to operate;
7.Double-faced diamond with grinding and sharpening system, the grinding wheel life is up to two years. Sharpening without disassemble with long life. Superior efficiency with dust absorption equipment to maintain the fabric and the track clean;
8.Importing precise ball screw and slides, paralleled promoting the cutting width, importing AC motor step-less adjustment system to adjust and control the cutting speed, high-precise cutting, the accuracy can be controlled within 0.1mm.
9.Standard configuration deviation-checking equipment system to further ensure the cutting precision.
10.Chinese and English operation interface with LCD display screens, can direct input several kinds of cutting width and number of load settings, and with manual / automatic conversion function, making the operation more simple and convenient;
11.High speed feeding design, reducing the labor effectively and increasing the production efficiency.
12.Automatic counting device, clearl at a glance.

Application

The non-woven slitting machine mainly application to the slitting non-woven fabrics.
